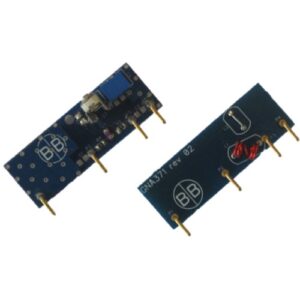

Response Equalizer, EDB

Response Equalizers to compensate for amplitude and frequency adjustments at different frequencies.   Usage: Magnavox® System Amplifiers
OEM P.N. BBI P.N. Values
8-EDB/750T 499758 Creates notch adjustable from 815-890 MHz
7-EDB-750BA 498750 Creates peak at 750 MHz with 0.5 of down tilt from 50-650 MHz
6-EDB/680/BA 498680 Creates peak at 750 MHz with 0.5 of down tilt from 50-550 MHz
6-EDB/515T 497515 Creates notch adjustable from 215-550 MHz
6-EDB/350T 497350 Creates notch adjustable from 365-750 MHz
6-EDB/155T 497155 Creates notch adjustable from 73-200 MHz
6-EDB/335B 496335 Creates peak adjustable from 175-350 MHz
6-EDB/165B 496165 Creates peak adjustable from 85-235 MHz w/ center freq of 165 MHz
6-EDB/76B 49676B Creates peak adjustable from 54-100 MHz
6-EDB/455B 496455 Creates peak adjustable from 250-650 MHz
BBI Magnavox Response Equalizer EDB Data Sheet
